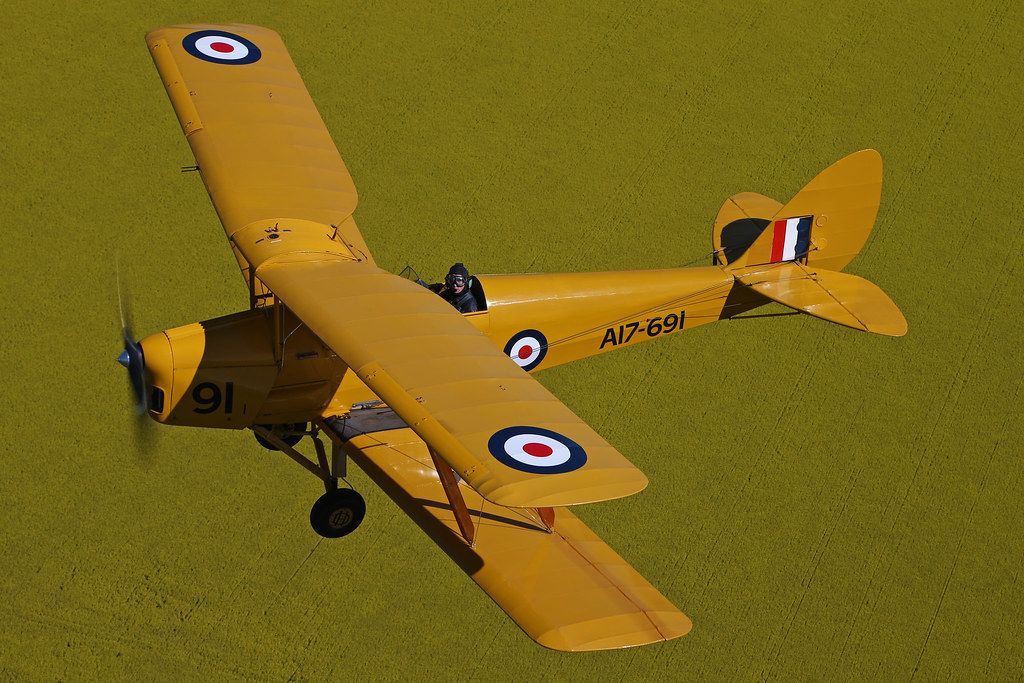

DH-82A Tiger Moth

Rego: VH-UVZ Military S/N: A17-691

The Tiger Moth in the Temora Aviation Museum’s collection is the oldest airworthy example in Australia. The Tiger Moth is an open tandem cockpit biplane that has a fuselage constructed from steel tubing and covered in a combination of fabric and thin plywood. The wings and tail plane are constructed of timber and covered with fabric. The Gypsy Major engine, fitted to VH-UVZ, was manufactured, under license, by General Motors Holden in Australia. De Havilland manufactured 8,811 DH 82 Tiger Moths between 1931 and 1945. A total of seven countries produced the Tiger Moth.

VH-UVZ was the second DH-82A imported from the UK into Australia and was registered on 12 August 1936 to Airflite Ltd at Mascot in Sydney.

DH-82A Tiger Moth

On 21 April 1937, VH-UVZ crashed into Sydney Harbour. According to newspaper reports at the time, it was circling above a steamer, which was departing from Circular Quay, when the aircraft stalled and spun into the water. The occupants were rescued with minor injuries and VH-UVZ was retrieved to fly again.

VH-UVZ was impressed into the Royal Australian Air Force (RAAF) on 19 August 1940, becoming A17-691 and served at No. 10 Elementary Flying Training School in Temora from July 1943 to the end of the war. In November 1999, David Lowy acquired the aeroplane and donated it to the Temora Aviation Museum during December 2000. The aircraft is painted in the yellow markings that it carried as a trainer during World War II.

Specifications

Engine

de Havilland Gipsy Major I
130 horsepower (97 kW)
Inverted, four cylinders, air-cooled piston engine.

Propeller

Fixed Pitch
6’ (1.8 m) diameter
Two blades made of laminated timber. Leading Edge covered with a thin brass strip to prevent damage.

Fuel

Aviation Gasoline 100 Octane
Main Tank Capacity: 19 Imperial Gallons 86 Litres 23 U.S. Gallons
Auxiliary Tank Capacity: 9 Imperial Gallons 41 Litres 11 U.S. Gallons

Dimensions

Wingspan: 29' 4" 8.94 m
Length: 23' 11" 7.29 m
Wing Area: 239 sq. ft 22.2 sq. m
Height: 8' 9 1/2" 2.68 m

Weights

Empty: 1,115 lb 506 kg
Maximum Takeoff weight: 1,770 lb 803 kg

Armament

Nil.

Performance

Maximum Speed: 95 knots 109 mph 176 km/h
Cruise Speed: 80 knots 92 mph 148 km/h
